Description

Ratings			Voltage range		Drive phase
Pn (KW)	Pn (hp)	I2n (A)
1.5	2.0	9.8	125 to 400V DC	200 to 240VAC	Single phase

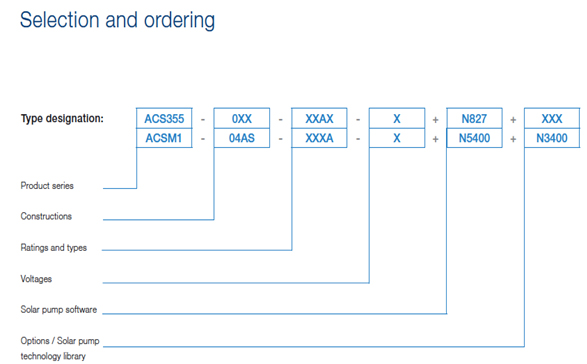

Type designation code



This is the unique reference number to identify your drive by power rating and frame size and can be used to determine the drive dimensions.



Voltages

The ACS355 is available in two voltage ranges:

2 = 125 to 400 V DC or 200 to 240 V AC

4 = 250 to 800 V DC or 380 to 480 V AC



Construction

“01E” within the type code varies depending upon on the drive phase and EMC filtering.



ACS355 0.37 to 18.5 kW

01 = 1-phase

03 = 3-phase

E = EMC filter connected, 50Hz
